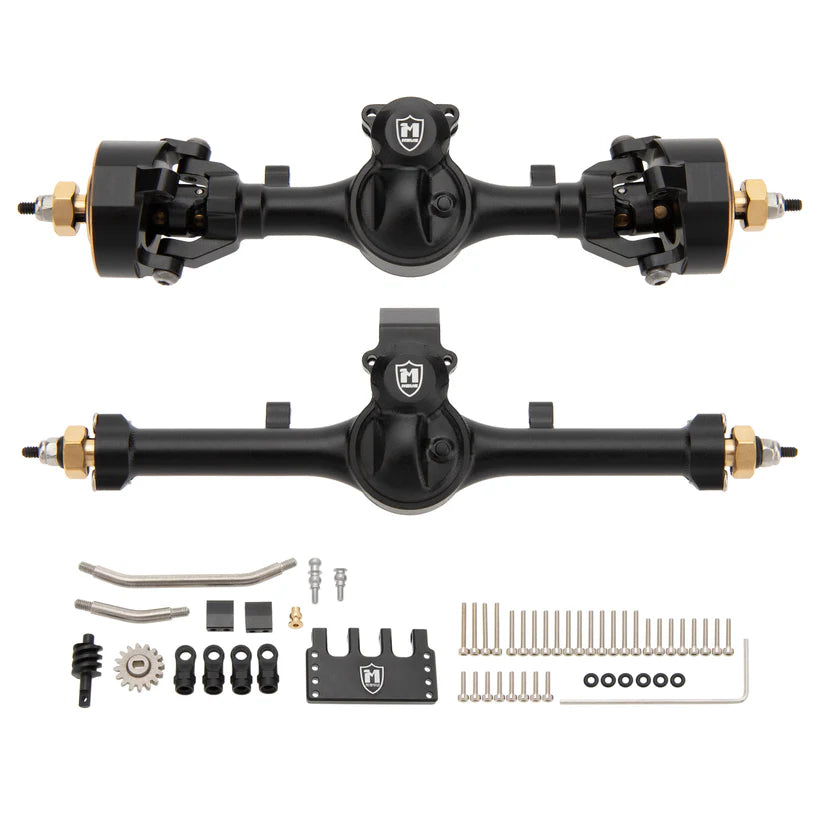

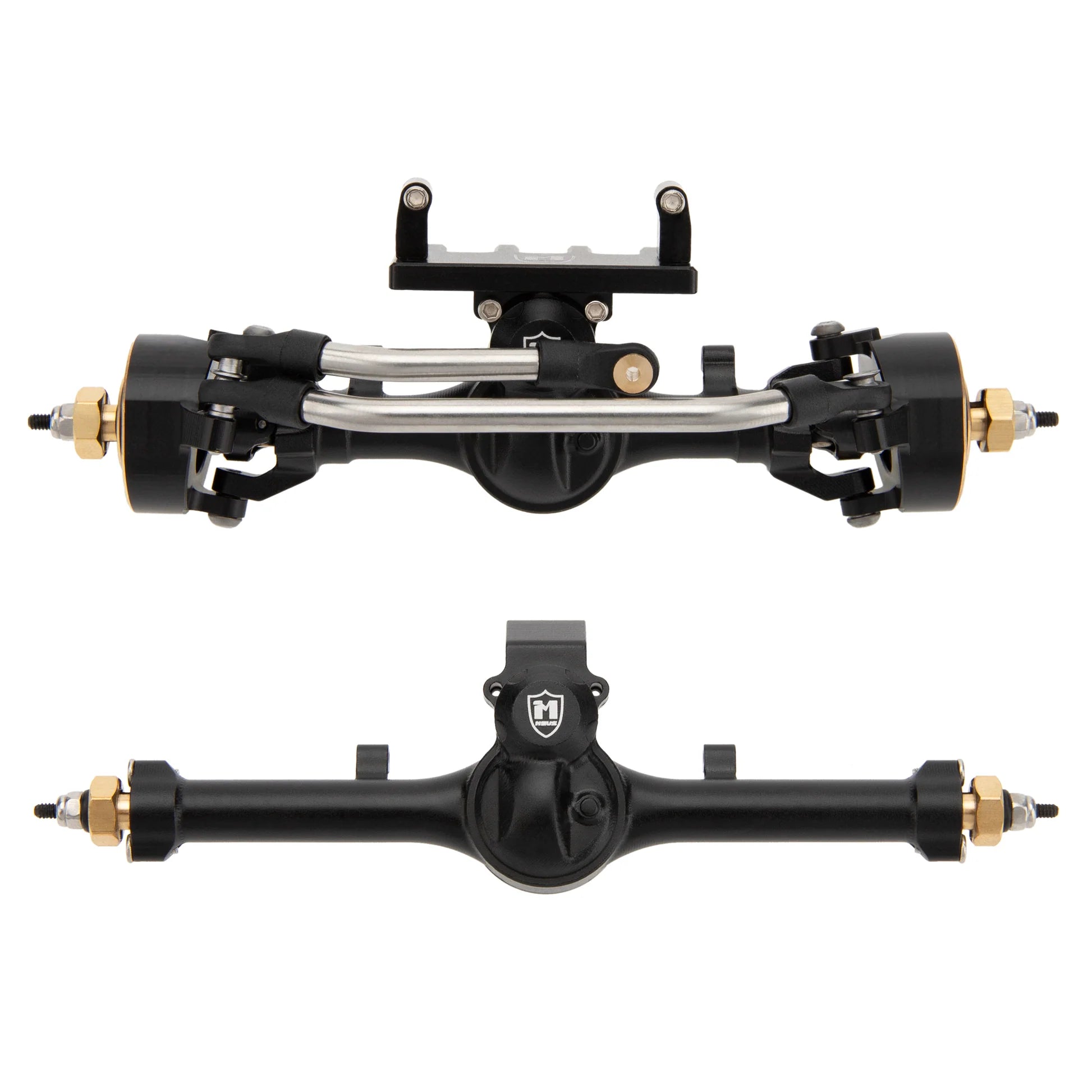

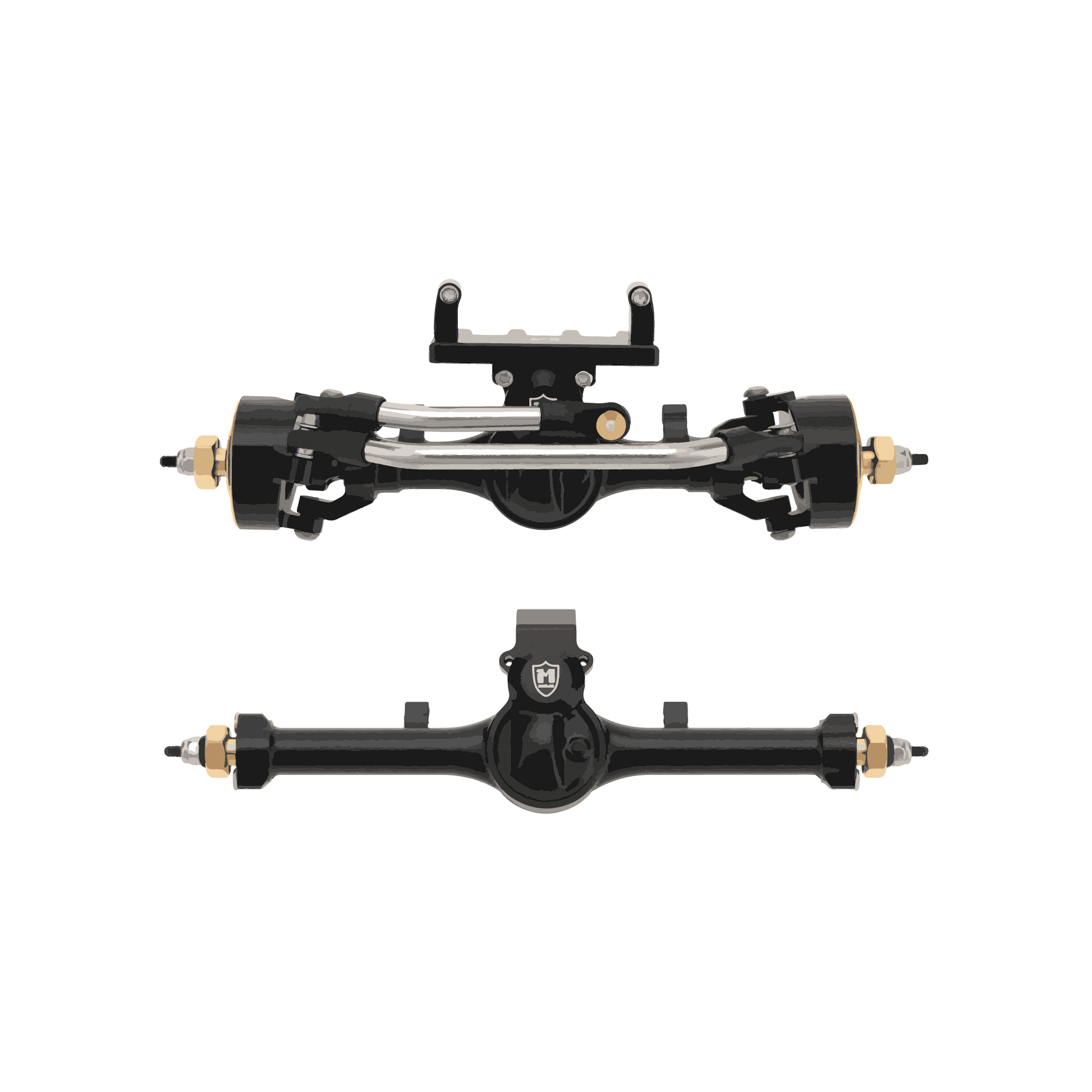

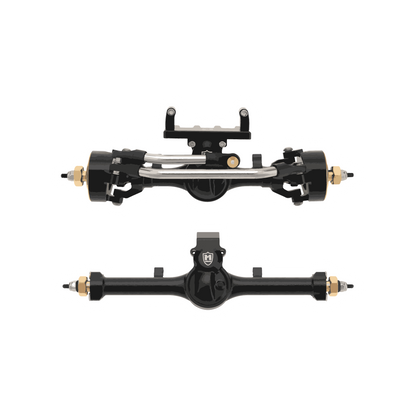

1/24th Isokinetic V2 Front & Rear Axle

MEUS Racing New SCX24 Metal Isokinetic Front Rear Axles +5MM Isokinetic 3-Section CVDs With 52° Steering Angle for 1/24 SCX24 Deadbolt C10 JLU Gladiator Bronco.

Key Features

• 1. V2 upgraded version of MEUS Racing SCX24 Isokinetic axles, suitable for Axial 1/24 RC crawler, Axial SCX24 Deadbolt C10 JLU Gladiator Bronco.

• 2. The spherical design differential shell and axle housing are made of aluminum alloy with an anodized surface. The front axle is 83g and the rear axle is 32g.

• 3. Comes with brass steering knuckles and diff cover to increase the weight on the front axle to improve traction, climbing ability, and steering response.

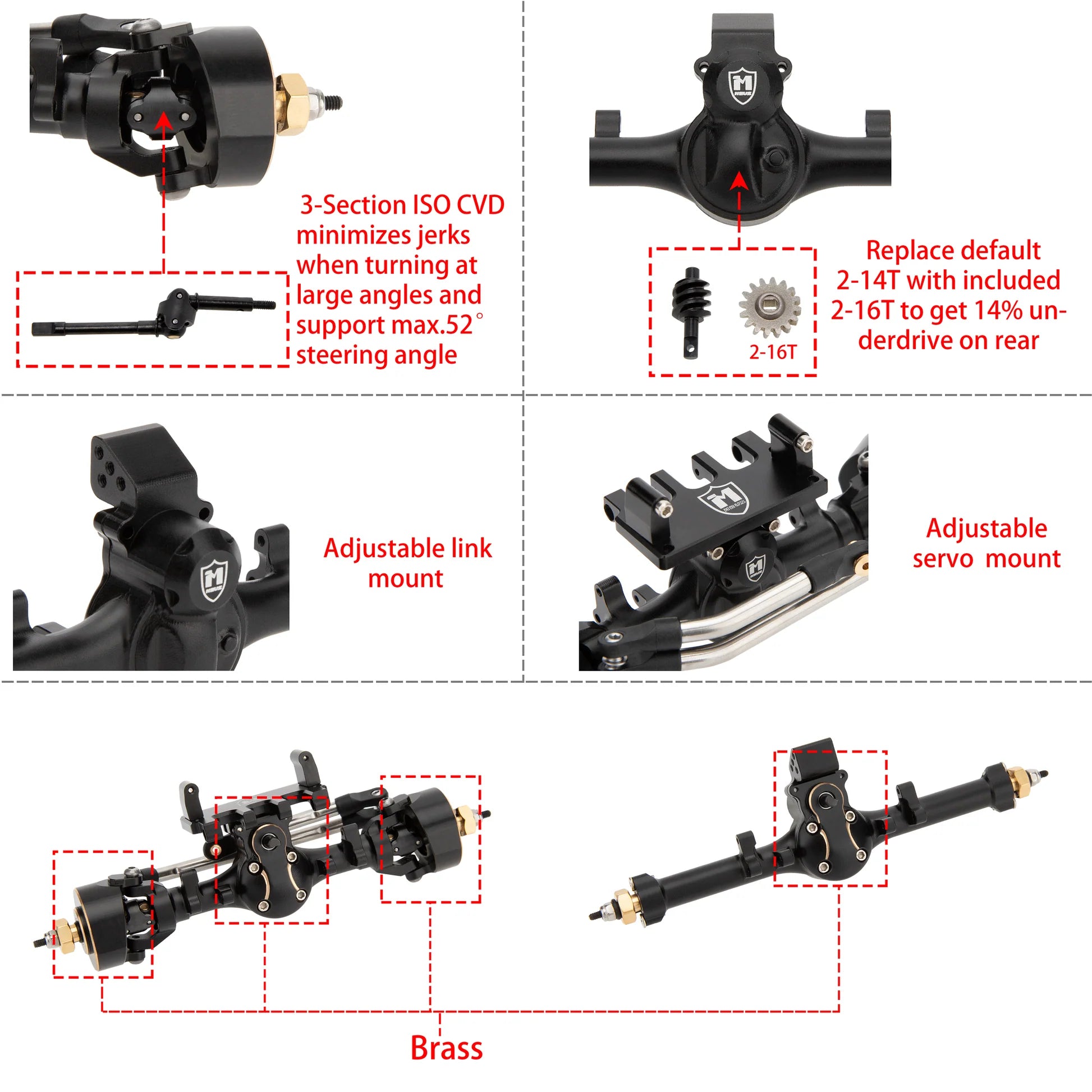

• 4. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively minimizes the jerks when turning at large angles and supports a max.52° steering angle.

• 5. Front axle equipped with customized thickened 2-14T gears, and the rear axle equipped with a conventional 2-14T gear.

• 6. The rear axle comes with 2-16T gears to get underdrive to increase front wheel speed and prevent the buggy from rolling over when climbing.

• 7. If you want the front wheels to overdrive, please change the differential gear of the front axle to our customized thickened 2-12T.
• 8. The front and rear axles are +5mm wider on both sides, with a 10° kingpin inclination angle, and feature Ackerman steering. The rear axle adds an integrated rear riser truss.
